Home > Products > Pneumatic Cylinder > Asia Standard Air Cylinder > Pneumatic Cylinder ISO6432 Standard High Quality Mini Type

Pneumatic Cylinder ISO6432 Standard High Quality Mini Type

Min. Order: 1 Piece/Pieces

Product Description

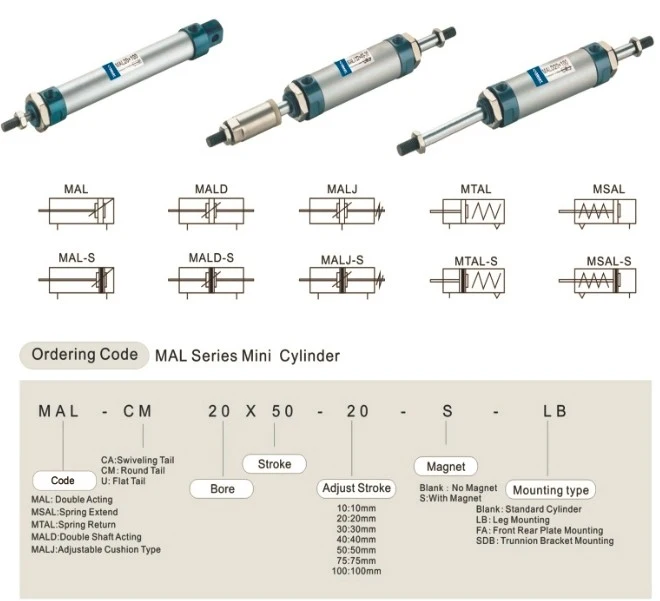

Pneumatic Cylinder ISO6432 Standard High Quality Mini Type
*The aluminum style cylinder cover and barrel are threaded together, and the Stainless Steel style cylinder cover and barrel are pressing together.

*mini cylinder can be easily changed to different appearance according to customers' requirement.

*Three style for back end cover, swiveling tail, round tail and flat tail

*Adjustable cushion is optional for working more stable if necessary.

*With self-lubricating bearing, the piston rod is lubrication free.

*Magnet and sufficient Fixing styles are available.

Why choose us?


(1) Quality, we only produce top-level quality products, we promise that all of our product's raw material are first class, and good quality system controls, so our goods' quality is very good.

(2) Price, our policy is that "Win-to-Win". That means in view of our long-standing business relationships, we only take small profit to help you for the marketing.

(3) Delivery, we alway have some products in stock, so we can complete the delivery within the time stipulated before.

(4) No MOQ, I think it is an attractive condition to some of you who have no big demands for each items temporarily.
Cylinder Diameter(mm)1620253240
Acting ModeDoubic Acting
Working MediumAir
Fixting typeBasic type FA FB CA CB LB TC TC-M
Rod end fitting typeBasic type TY TI TF TB
Working pressure(MPa)0.1-0.9
MAX.Pressure(MPa)1.35
Working temperature( )-5-70
Speed range(mm's)50~800
Cushion typeAdjustable Cushion
Cushion stroke(mm)2432
Joint Size(mm)M5*0.8G 1/8G1/4

Contact us if you need more details on Pneumatic Cylinder. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Pneumatic Air Cylinders、Mini Cylinders. If these products fail to match your need, please contact us and we would like to provide relevant information.
