Asia Standard Sc Double Acting Tie Rod Pneumatic Air Cylinder

Min. Order: 1 Piece/Pieces

Product Description

Asia Standard Sc double acting tie rod Pneumatic Air Cylinder

Asia Standard Sc Double Acting Tie Rod Pneumatic Air Cylinder

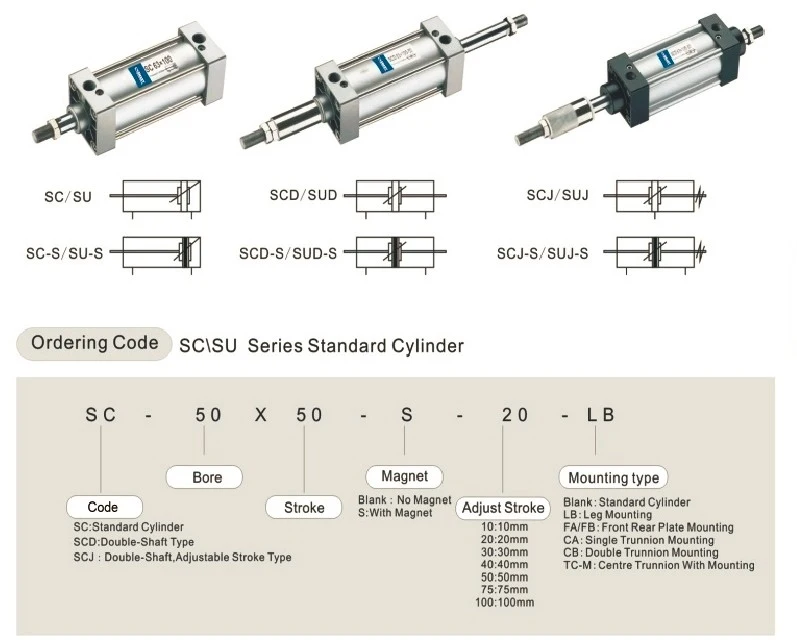

SC Series Pneumatic Cylinder (Air Cylinder)

SC Series pneumatic cylinder has two types Tie-rod type and X type, normal bore size from 32mm to 200mm, bigger size from 250mm to 600mm can also be provided. This series is popular selling in the Asia
Bore Size32mm40mm50mm63mm80mm100mm
ActionDouble Acting Type
FluidAir
Mounting TypeSC: Basic, LB, FA, FB,CA, CB, TC, TC-M
SCD, SCJ: Basic, FA, LB, TC, TC-M
Operating Press.0.1~0.9 Mpa
Proof Pressure1.5 Mpa
Ambient and fluid Temp.-10~70
Speed RangeSC: 50~800 mm/s SCD, SCJ: 30~800 mm/s
CushionVariable cushion
Cushion stroke24mm32mm
Port Size1/81/43/81/2



Asia Standard Sc Double Acting Tie Rod Pneumatic Air Cylinder

Asia Standard Sc Double Acting Tie Rod Pneumatic Air Cylinder



Other Popular Models:


Asia Standard Sc Double Acting Tie Rod Pneumatic Air CylinderAsia Standard Sc Double Acting Tie Rod Pneumatic Air CylinderAsia Standard Sc Double Acting Tie Rod Pneumatic Air Cylinder

Asia Standard Sc Double Acting Tie Rod Pneumatic Air CylinderAsia Standard Sc Double Acting Tie Rod Pneumatic Air CylinderAsia Standard Sc Double Acting Tie Rod Pneumatic Air Cylinder
Why choose us?

1: Various style of completely series pneumatic products for you to choose.
2: High quality and competitive price,100% tested before shipment.
3: Sample order & small quantity order is accepted.
4: Large stock & fast shipment.
5: Factory location near by shipment port,convenient transportation and low cost.

Contact us if you need more details on Pneumatic Cylinder. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Air Cylinder、Pneumatic. If these products fail to match your need, please contact us and we would like to provide relevant information.
