Product Description
Product Explanation:

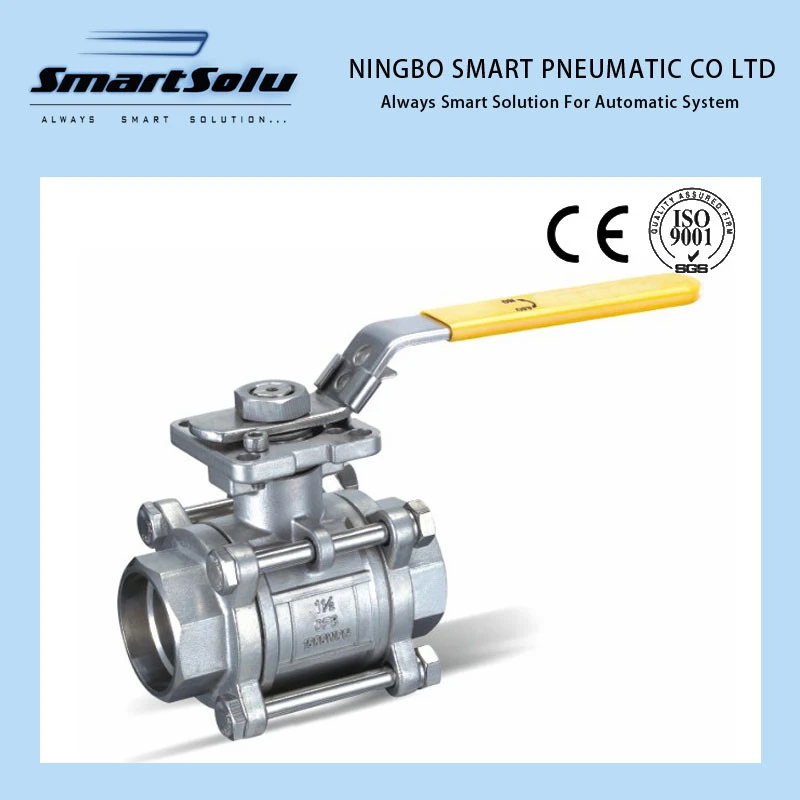

3PCS ISO5211 Direct Mounting Pad Butt-Weld Float Ball
ValveDetailed Product Description
Working pressure: 1000WOG
Temperature: -20-250°
Suitable medium: Water, Oil, Gas and some Corrosive liquid
Standards compliance
Butt welded: GB12224. ANSI B 16.25
No. | Parts Description | Material |
1 | Body | CF8M | CF8 | WCB |
2 | Bonnet | CF8M | CF8 | WCB |
3 | Ball | SS316 | SS304 |
4 | Seat | PTFE RPTFE PPL |
5 | Nut | A193-B8 | A193-B7 |
6 | Stem | SS316 | SS304 | 2Gr13 |
7 | Anti-Static | SS304 |
8 | Thrust Washer | PTFE |
9 | Packing | PTFE |
10 | Transition Washer | RPTFE Expanded Graphite |
11 | Packing Ring | SS304 |
12 | Belleville Washer | SS304 |
13 | Nut | SS304 |
14 | Loose Resistant Cover | SS304 |
15 | Spring Washer | SS304 |
16 | Nut | SS304 |
17 | Handle Nut | SS304 |
18 | Stop Plate | SS304 |
19 | Handle | SS304 |
20 | Handle Cover | Plastic |
21 | Stop Bolt | SS304 |
22 | Lock Screw | SS304 |
23 | Handle | SS304 |
24 | Hand Adapter | CF8 |
Why choose us?
(1) Quality, we only produce top-level quality products, we promise that all of our product's raw material are first class, and good quality system controls, so our goods' quality is very good.
(2) Price, our policy is that "Win-to-Win". That means in view of our long-standing business relationships, we only take small profit to help you for the marketing.
(3) Delivery, we alway have some products in stock, so we can complete the delivery within the time stipulated before.
(4) No MOQ, I think it is an attractive condition to some of you who have no big demands for each items temporarily.
Contact us if you need more details on Ball Valve. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Wafer End Ball Valve、Mini Ball Valve. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : Pneumatic Valves > Pneumatic Ball Valves
