Wafer Pneumatic Ball Valve Angle Valve

Min. Order:	1 Piece/Pieces

Product Description

Product DescriptionProduct Explanation:

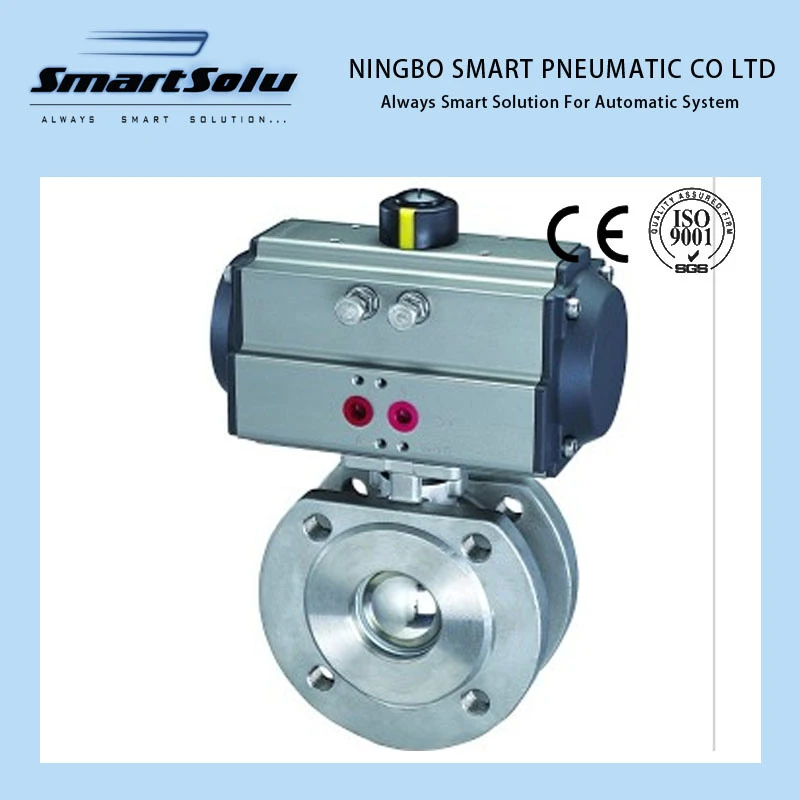

Wafer Pneumatic Ball Valve

Applicable Standards

Working Pressure: PN16/40

Temperature Range: -20-350 oC

Suitable medium: Water, Oil, Gas, and some corrosive liquid

Design: GB/T12237/1989

End Flange: JB79

Fire Safe: API 607 th 1993

Inspection & Testing: GB/T13927-1992

No.	Parts Description	Material
1	Body	CF8M	CF8	WCB
2	Bonnet	CF8M	CF8	WCB
3	Ball	SS316	SS304
4	Seat	PTFE PPL
5	Stem	SS316	SS304	2Gr13
6	Anti-Static	SS304
7	Stem Gasket	PTFE
8	Thrust Washer	PTFE
9	Packing	PTFE Expanded Graphite
10	Transition Washer	SS304
11	Packing Ring	SS304
12	Belleville Washer	SS304
13	Nut	SS304
14	Loose Resistant Cover	SS304
15	Handle Nut	SS304
16	Stop Plate	SS304
17	Handle	SS304
18	Handle Cover	Plastic
19	Stop screw	SS304
20	Set Screw	SS304
21	Handle	SS304
22	Spanner	CF8

Why choose us?

(1) Quality, we only produce top-level quality products, we promise that all of our product's raw material are first class, and good quality system controls, so our goods' quality is very good.

(2) Price, our policy is that "Win-to-Win". That means in view of our long-standing business relationships, we only take small profit to help you for the marketing.

(3) Delivery, we alway have some products in stock, so we can complete the delivery within the time stipulated before.

(4) No MOQ, I think it is an attractive condition to some of you who have no big demands for each items temporarily.

Contact us if you need more details on Ball Valve. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Wafer End Ball Valve、Mini Ball Valve. If these products fail to match your need, please contact us and we would like to provide relevant information.
