Tn Series Double-Shaft Cylinder

Min. Order: 1 Piece/Pieces

Product Description


Tn Series Double-Shaft CylinderSpecifications1.Compact design with a short overall length make the cylinder easy to install in. 2.Pressure:0.1-0.9Mpa 3.Port size:M5,1/8TN Cylinder Features:
1) Compact design with a short overall length make the cylinder easy to install
in confined spaces
2) The objects can be mounted from three different sides
3) No accessories required for mounting
4) Using the dual rod construction, easily reaches non-rotating accuracy and
twice the cylinder thrust
5) An adjustment of 0-10mm can be made in relation to the standard stroke
6) All cylinders are supplied as standard with magnetic pistons for use with
switch sensors    Why choose us?

(1) Quality, we only produce top-level quality products, we promise that all of our product's raw material are first class, and good quality system controls, so our goods' quality is very good.

(2) Price, our policy is that "Win-to-Win". That means in view of our long-standing business relationships, we only take small profit to help you for the marketing.

(3) Delivery, we alway have some products in stock, so we can complete the delivery within the time stipulated before.

(4) No MOQ, I think it is an attractive condition to some of you who have no big demands for each items temporarily.

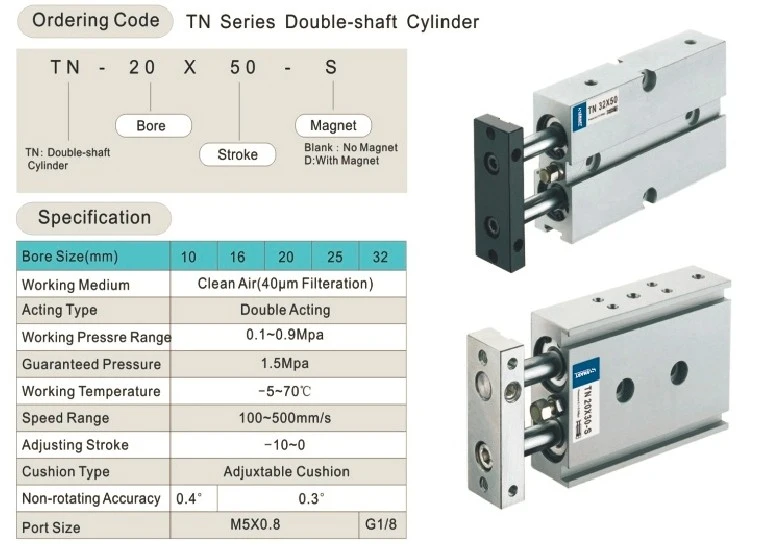

Cylinder Diameter(mm)                 10           16           20          25           32
Cylinder Acting ModeDouble acting cylinder
Cylinder MediumClean Air
Working pressure:1-9 Bar
Max working pressure:13.5 Bar
Working Temperature-5 to 70 degree
Speed range100 to 800
Buffer stroke MM-10 to 0
Buffer typeAdjustable buffer
No-return precision0.4  0.3
Joint sizeM5*0.8                                                             PT1/8"
